Wireless gate contact for the Protect 800 alarms
Reference: 004-4300-00
Long Range Battery Powered Wireless (800 metre) Gate or Roller Shutter Door Contact for use with the Protect 800 Alarms.
£ 111.67 inc. VAT
Order now and we will send it as soon as it is back in stock.
This item cannot be ordered at the moment. Ask us and we will tell you when it is back or suggest an alternative.
Ask about availabilityQuantity discounts
| Quantity | Unit price | You save |
|---|---|---|
Not sure it's the right kit for your need?
Free advice from our security specialists: we help you choose, set up and install.
Ask about this product
Description

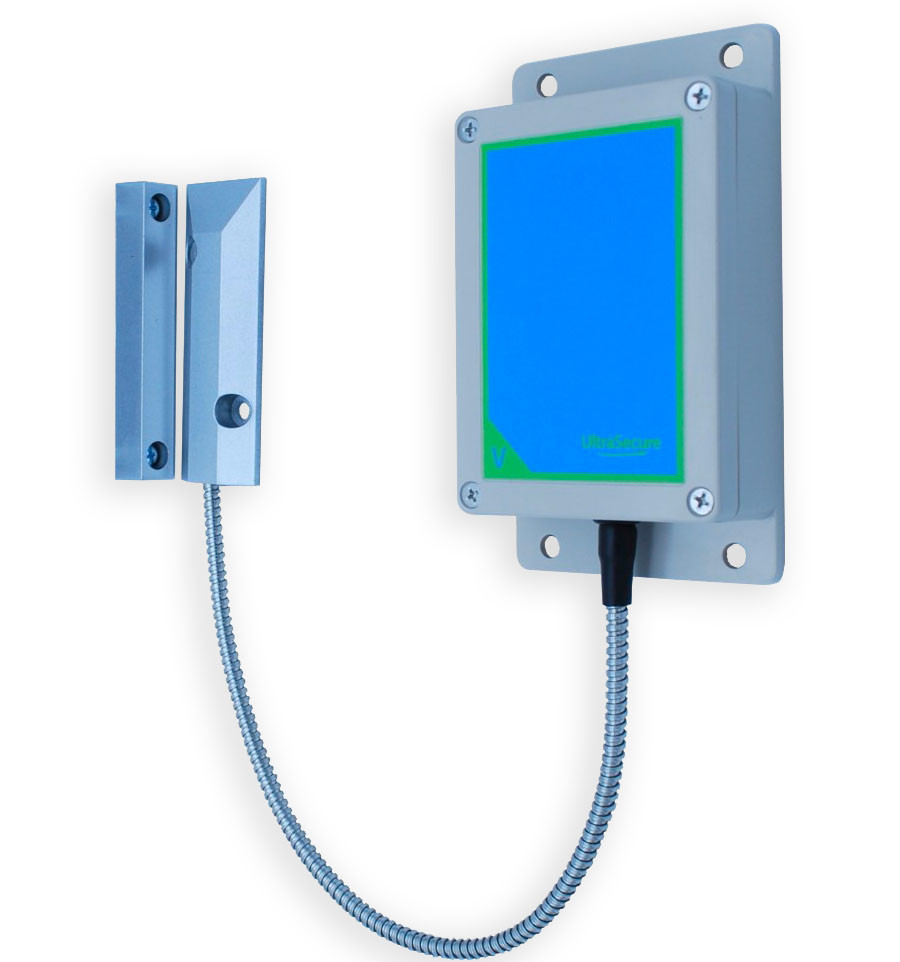

Long Range Battery Powered Wireless (800 metre) Gate or Door or Roller Shutter Door Contact for use with the Protect 800 Alarms.
The Battery powered Transmitter Board is located inside a Weatherproof Box, the operating range back to any Protect 800 Receivers is 800 metres (line of sight), which equates to round 400 - 600 metres in most applications.
The Transmitter is powered by a 3v CR123A Battery (supplied) which would last 12 - 18 months in most applications, the Receivers would notify you in a low battery situation.
Connected to this Transmitter Box is a Wired Contact with an armoured protective sleeve, the Contact would be fitted to the Gate Post (or door frame or floor if used with door or roller shutter contact).
The Magnet would be fitted to the Gate, Door or Roller Shutter Door, it is supplied with an optional right hand mounting bracket to aid installation.
What's in the box
- 1×Protect 800 Transmitter inside a weatherproof Box with Battery
- 1×Wired N/O & N/C Gate Contact Kit
Specifications
Transmitter
- Wireless range
- 800 metre (line of sight)
- Power supply
- 1 x 3v Lithium CR123A Battery
- Battery life
- 12 - 18 months (most applications)
- Size
- 65 x 33 x 15 mm
- Activation methods
- Wired Input: Yes (N/O or N/C Momentary Volt Free, when used as a circuit board)
Mounting box
- Material
- Plastic
- Weatherproof
- IP65
- External size
- 150 (L) x 85 (W) x 34 (D) mm
- Internal size
- 106 (L) x 76 (W) x 28 (D) mm
- Label
- V range
Magnetic contact
- Switch type
- Normally Closed
- Size of switch
- 105 x 37 x 10 mm
- Cable length to switch
- 360 mm
- Cable protection
- Armoured
- Magnet size
- 105 x 15 x 15 mm
- Right hand bracket size
- 105 x 50 x 50 mm
- Use with
- Gate, Door or Roller Shutter
