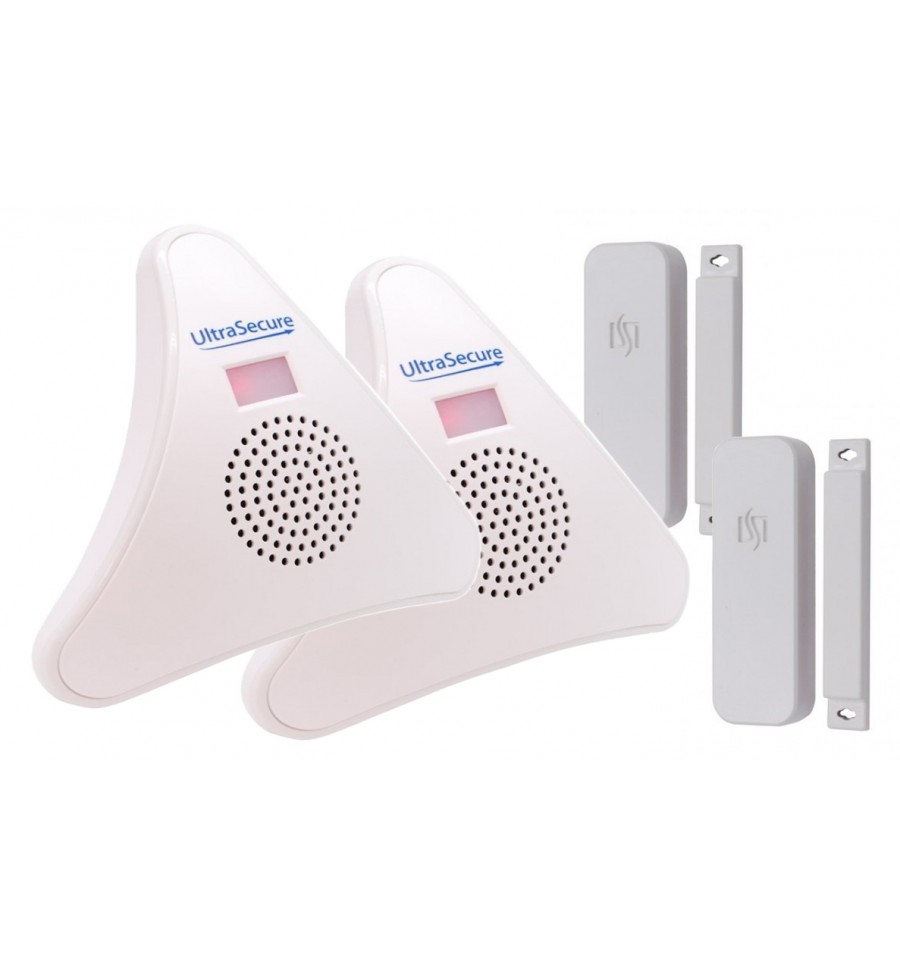

DA600T+ Wireless Door Alert Kit

Wireless Door Alert designed to monitor a closed door being opened, supplied with:

• 2 x Battery Powered Wireless Door Contact.
• 2 x Wireless Chime Receivers are powered by a Plug in USB Cable (with 35 optional chimes & volume control).

In the event of the Door being opened, the Internal Receivers will chime on the chosen sound (35 options) and at the adjusted volume.

Additional Door Contacts can be added including the standard 300 metre model (004-2820) supplied within this kit or the long range 700 metre Solar Powered model (004-3800).

Door Contact:

The wireless operating range between the Door Contact and Receiver is 300 metres (line of sight) which equates to around 100 - 150 metres in most applications, this can be increased up to 900 metres and by adding a Signal Repeater (004-2910).

The Magnetic Door Contact is powered by 2 x AAA batteries which would last between 1 - 2 years in most applications.

They are fitted using double sided tape and a couple of small screws in some applications, and would be fitted onto a door and door frame in such a position that both parts are within 1 - 8 mm from each other when the door is closed. The normal location would be on the top ledge about 1/3rd in from the hinge.

Receiver:

The Wireless Receivers are powered by plug in USB Cable & Plug (supplied) and can be Desk or Wall mounted, there is the option to insert 4 x AA batteries (not supplied) which will operate the Receivers in the event of a power failure (It is not designed to be run just battery).

Additional Receivers can be added (no limit), reference 004-5100.

The Receivers have an illuminated Display Screen which identifies when the Receiver is ON and when they are in Pairing Mode.

they have:

• Volume Control (4 levels).
• 35 different Chimes.
• Can be used with up to 32 Sensors (door, movement or push button).

A very simple Wireless Door Alert that can be expanded to suit additional requirements

• 2 x DA-600T Wireless Receivers & USB Cables.
• 2 x Magnetic Door Contacts.

Receiver:

• Power Supply: USB Cable & 3-pin Plug.
• Battery Backup: Yes (4 x AA Batteries, not supplied).
• Volume Control: Yes (4 levels).
• Display Screen: Yes (identifies when the Receiver is ON, or when in Pairing Mode).
• Chimes: 35.
• Wireless Range: 600 metres (line of sight).
• Can work with additional PIR's: Yes (maximum 32).
• Colour: White.
• Size: 150 x 150 x 150 mm.

Door Contacts:

• Size of Switch: 90 x 28 x 15 mm.
• Size of Magnet: 90 x 13 x 8 mm.
• Installation Method: Double Sided Tape (supplied) & 2 x Screws (optional).
• Transmission Range: 300 metres (line of sight).
• Contact Distance: Approximately 10 mm.
• Batteries: 2 x AAA Batteries.
• Battery Life: 1 - 2 years (depending on usage).
